In the evolving landscape of precision engineering and micro-drive technology, the demand for compact, efficient, and highly responsive motors has never been greater. At Flourishing, we specialize in meeting these demands through advanced motor solutions. Among the various technologies we manufacture, the coreless dc motor stands out as a pinnacle of efficiency and dynamic performance.

To truly appreciate the advantages of this technology, one must first understand the limitations of conventional designs. A typical brushed DC motor is constructed with an outer stator—usually composed of permanent magnets or electromagnetic windings—and an inner rotor made of heavy iron laminations wrapped in copper coil windings. A segmented commutator and brush system manage the electrical flow, energizing the rotor windings in a specific sequence to generate continuous rotation. While reliable, the heavy iron core introduces inertia and magnetic losses that limit performance in high-speed applications.

The Coreless Design Revolution

Coreless DC motors represent a radical departure from this traditional architecture. As the name suggests, they completely eliminate the laminated iron core from the rotor. Instead of winding copper wire around heavy steel laminations, the rotor windings are self-supporting.

This is achieved through a specialized manufacturing technique where the wire is wound in a skewed or honeycomb pattern. This structure forms a rigid, hollow cylinder, often referred to as a "basket." Because there is no iron to provide structural support, the windings are typically bonded together with high-strength epoxy resin. The stator, comprised of powerful rare earth magnets such as Neodymium, AlNiCo (aluminum-nickel-cobalt), or SmCo (samarium-cobalt), is positioned inside this hollow coreless rotor.

This unique configuration leads to the technical coreless motor definition ironless rotor basket winding, a phrase that encapsulates the three critical components: the absence of a magnetic core, the lightweight rotor, and the intricate winding geometry.

Key Components and Terminology

In the industry, you might hear these motors referred to by several names, including "air core," "slotless," or "ironless" motors. Regardless of the terminology, the principle remains the same: removing the iron removes the weight and the magnetic detent.

Commutation Systems

The efficiency of a coreless motor is also heavily dependent on its commutation system. At Flourishing, we utilize two primary brush technologies depending on the application:

• Precious Metal Brushes: Utilizing materials like silver, gold, platinum, or palladium, these brushes are paired with precious metal commutators. This combination offers extremely low contact resistance and is ideal for low-current, high-precision applications where electrical noise must be minimized.

• Graphite Brushes: For more demanding tasks, sintered metal graphite brushes are used in conjunction with copper commutators. This robust design is suited for higher power outputs and larger current loads, providing durability in rugged environments.

Advantages of Coreless Technology

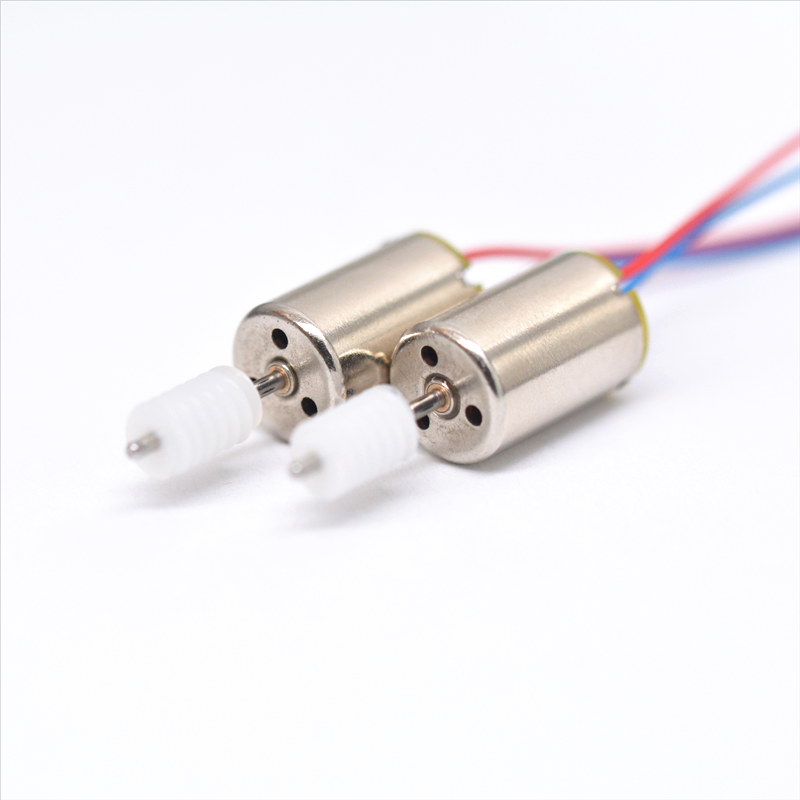

The structural innovation of the coreless electric motor translates directly into superior performance metrics compared to traditional iron-core counterparts.

1. Rapid Acceleration and Deceleration

The most immediate benefit is the drastic reduction in rotor mass. Without the heavy iron laminations, the rotor's inertia is minimal. This allows the motor to accelerate to top speed and brake to a halt in milliseconds, making it perfect for applications requiring high-dynamic response, such as robotics and servo systems.

2. Superior Efficiency

Iron cores suffer from "iron losses" due to hysteresis and eddy currents—essentially energy wasted as heat. By removing the iron, coreless motors eliminate these losses entirely. This results in efficiency ratings that can exceed 90%, significantly higher than standard DC motors. For battery-operated devices, this means longer runtimes and less energy consumption.

3. Elimination of Cogging

In traditional motors, the magnetic attraction between the iron rotor and the permanent magnets causes "cogging"—a jerky motion at low speeds. Since the coreless rotor contains no iron, there is no magnetic attraction to the stator magnets when the power is off. This absence of cogging ensures exceptionally smooth rotation, precise position control, and linear torque delivery even at very low RPMs.

4. Reduced Electrical Noise and Extended Life

The coreless winding design inherently has lower inductance. This physical property reduces the energy stored in the coils, which in turn minimizes the sparking between the brushes and the commutator during operation. Less sparking means less electrical erosion, leading to a longer service life and significantly reduced electromagnetic interference (EMI)—a crucial factor for medical and communication devices.

Engineering Challenges and Solutions

While the advantages are numerous, designing high-performance coreless motors requires overcoming specific thermal challenges. Because there is no iron core to act as a heat sink, the copper windings must withstand high thermal loads, especially during peak torque demands. At Flourishing, our engineering team addresses this by optimizing airflow through the motor housing, utilizing high-temperature wire insulation, and employing advanced bonding materials to ensure the rotor maintains its structural integrity under heat stress.

Applications: Where Coreless Motors Shine

The compact, high-power-density nature of the coreless dc motor makes it the component of choice for industries where size and weight are critical constraints.

Typically ranging in size from a microscopic 4mm up to 75mm, these motors are ubiquitous in:

• Medical Technology: From insulin pumps and surgical robots to powered prosthetics and X-ray collimators, reliability and precision are non-negotiable.

• Industrial Automation: High-speed pick-and-place robots, miniature grippers, and precision linear actuators benefit from the rapid response times.

• Personal Care: As a premier hollow cup motor supplier, we provide specialized motors for premium beauty instruments and massage devices requiring quiet, smooth operation.

• Aerospace and Defense: In drones and guidance systems, the high power-to-weight ratio is a mission-critical attribute.
