Is A Brushless Motor Better Than A Brushed Motor?
In the industrial and hobbyist sectors, the brushless vs brushed motor debate is a constant topic of discussion. Both technologies have distinct strengths that make them suitable for specific applications. To make the right engineering choice, you need to look beyond just the price tag and understand the mechanics, longevity, and performance profiles of each.
This guide provides a deep dive into the brushless motor vs brushed motor comparison, helping you decide which technology aligns with your project goals.
Understanding Brushed Motors
Design and Operation

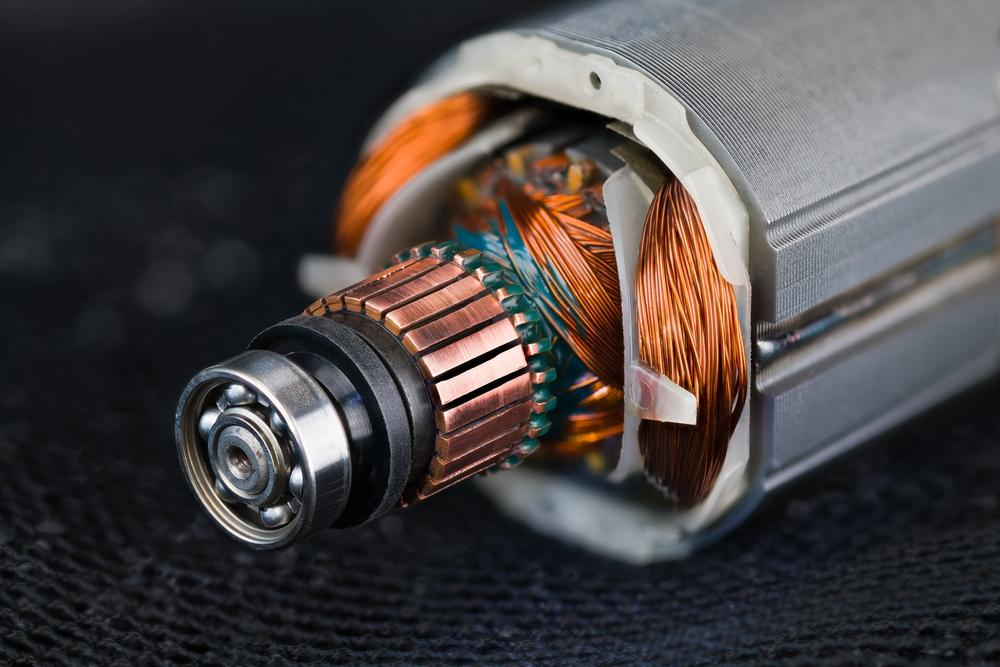

Brushed DC motors are the workhorses of the electric motor world. Their design is classic and effective, consisting of a stator (stationary field), a rotor (armature), a commutator, and brushes. The brushes, typically made of carbon, physically contact the commutator to deliver electrical current to the rotor. This physical connection creates the magnetic field required to spin the armature.
Advantages of Brushed Motors
1. Simplicity of Design
Straightforward Construction
The beauty of a brushed motor lies in its simplicity. With fewer electronic components required to run, they are easier to manufacture and understand.
Ease of Use
You don't need a complex computer to run them. A simple DC voltage source is often enough to get them spinning. This "plug-and-play" nature simplifies system design significantly.
2. Cost-Effectiveness
Lower Initial Cost
Because they use standard materials and lack complex internal electronics, brushed motors are generally cheaper to buy off the shelf.
Affordable Maintenance
When they do fail, it is usually the brushes that wear out. These are cheap and easy to replace without needing a specialized technician.
3. High Starting Torque
Immediate Power Delivery
Brushed motors are famous for their high torque at low speeds. This makes them excellent for heavy-duty applications like cranes or winches where immediate power is needed to get a load moving.
4. Simple Speed Control
Controlling the speed is as simple as adjusting the voltage. If you are sourcing from a hollow cup motor supplier for a tattoo machine, for example, you likely value this linear response where more voltage equals more speed.
Disadvantages of Brushed Motors
Despite their reliability, the brush vs brushless motor comparison reveals significant downsides to older technology.
1. High Maintenance Requirements
The physical friction of the brushes against the commutator causes wear. This creates carbon dust and necessitates regular cleaning and brush replacement, leading to downtime.
2. Lower Efficiency and Heat
Friction generates heat. This energy loss means brushed motors are less efficient than their brushless counterparts. In battery-operated devices, this translates to shorter run times.
3. Electrical Noise
The sparking that occurs at the brush-commutator interface generates electrical noise (EMI), which can interfere with sensitive electronics nearby.
Understanding Brushless Motors
Design and Operation
So, how do brushless motors work? As the name implies, they eliminate the physical brushes. Instead, they use an electronic controller to switch the current in the stator windings. The rotor usually contains permanent magnets, and the controller rotates the magnetic field electronically to pull the rotor around. This eliminates physical friction in the commutation process.
Advantages of Brushless Motors
Brushless DC motors (BLDC) have become the standard for modern applications, from drones to electric vehicles.
1. Higher Efficiency
Without the friction of brushes, BLDC motors convert a higher percentage of electrical power into mechanical energy. This efficiency is a game-changer for battery life in portable tools and EVs.
2. Low Maintenance
Since there are no brushes to wear out, these motors can run for tens of thousands of hours with virtually no maintenance. The limiting factor is usually the bearings.
3. Superior Speed and Torque Control
Because an electronic computer controls the motor, you can achieve precise speed and torque management. This is vital for robotics and CNC machining.
4. Compact Power Density
BLDC motors can be made smaller and lighter while delivering the same power as a larger brushed motor. This high power-to-weight ratio is why they are essential in aerospace and handheld devices.
Disadvantages of Brushless Motors
1. Higher Initial Cost
The motors themselves are more expensive to manufacture, often requiring rare-earth magnets. Furthermore, they require an electronic speed controller (ESC), which adds to the system cost.
2. Complexity
You cannot simply hook a battery up to a BLDC motor and expect it to spin. It requires a controller to sequence the phases. This adds a layer of complexity to the design and repair process.
Comparative Analysis: Brushless vs. Brushed Motors
Efficiency and Performance
If your priority is maximizing battery life or minimizing heat, the brushless motor wins. For applications where efficiency is less critical than raw starting power on a budget, brushed motors hold their own.
Maintenance and Longevity
For "set it and forget it" reliability in hard-to-reach places, brushless is the only choice. If the motor is easily accessible and you have a maintenance team, the lower cost of brushed motors might appeal to you.
Application Suitability
Brushed Motors: Best for automotive starters, simple toys, household appliances, and budget-friendly power tools. If you are looking for industry leaders in this space, check out our list of top DC motor manufacturers to find reliable partners.
Brushless Motors: Essential for drones, computer cooling fans, electric vehicles, and high-end industrial automation where precision is key.
Conclusion
When weighing brushless vs brushed motor technology, the answer depends on your specific constraints. Brushless motors are superior in performance, longevity, and efficiency, making them the standard for modern, high-tech applications. However, brushed motors remain a viable, cost-effective solution for simple, rugged applications where advanced control isn't necessary.
